ULD

Optimize space

Unit Load Device

A Unit Load Device (ULD) is a pallet or container used to load luggage, freight and mail onto a wide-body aircraft or a specific narrow-body aircraft. It allows a large quantity of cargo to be bundled into one single unit. This leads to fewer units to load thus saving time and effort for ground crews, and it helps preventing delays. Each ULD has its own packing list (or manifest) so that its contents can be tracked.

10 ft-Container

Loadable in: MD11, B747-200F, B747-200 SF, B747-400 ERF, B767-300 F, A300 F

Dimensions outside (LxWxH): 125 x 96 x 96 in / 318 x 244 x 244 cm
Dimensions inside (LxWxH): 120 x 91 x 94 in / 306 x 230 x 240 cm
Usable volume: 529 Cu.ft / Ca 15 m3

Standard weight (dep. manufact.): 570-705 lbs / 260-320 kg
Max gross weight: 15000 lbs / 6804 kg

Max load of the internal tie-down points: 2000 lbs / 907 kg

10 ft-Container

Loadable in: MD11, B747-200F, B747-200 SF, B747-400 ERF, B767-300 F, A300 F

Dimensions outside (LxWxH): 125 x 96 x 96 in / 318 x 244 x 244 cm
Dimensions inside (LxWxH): 120 x 91 x 94 in / 306 x 230 x 240 cm
Usable volume: 529 Cu.ft / Ca 15 m3

Standard weight (dep. manufact.): 725-1025 lbs / 330-465 kg
Max gross weight: 15000 lbs / 6804 kg

Hanging load: 5510lbs / 2500 kg
Max load of the internal tie-down points: 2000 lbs / 907 kg

Container for A320 / A321

Loadable in: A320-200, A321-100

Dimensions outside (LxWxH): 61 x 60 x 45 in / 156 x 153 x 114 cm
Dimensions inside (LxWxH): 57 x 57 x 44 in / 146 x 144 x 111 cm
Dimensions of shell top outside (LxW): 96 x 60 in / 244 x 153 cm
Dimensions of shell top inside (LxW): 94 x 57 in / 142 x 103 cm

Width of door opening (W x H): 56 x 41 in / 142 x 103 cm
Usable volume: 120 Cu.ft / Ca 3.4 m3

Standard weight: 187 lbs / 85 kg
Max gross weight: 2500 lbs / 1134 kg

Max load of the internal tie-down points: 2000 lbs / 907 kg

Container for A320 / A321 with door (lockable)

Loadable in: A320-200, A321-100

Dimensions outside (LxWxH): 61 x 60 x 45 in / 156 x 153 x 114 cm
Dimensions inside (LxWxH): 57 x 57 x 44 in / 146 x 144 x 111 cm
Dimensions of shell top outside (LxW): 96 x 60 in / 244 x 153 cm
Dimensions of shell top inside (LxW): 94 x 57 in / 142 x 103 cm

Width of door opening (W x H): 56 x 41 in / 142 x 103 cm
Usable volume: 120 Cu.ft / Ca 3.4 m3

Standard weight: 187 lbs / 85 kg
Max gross weight: 2500 lbs / 1134 kg

Max load of the internal tie-down points: 2000 lbs / 907 kg

Container LD3

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-400 ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600

Dimensions outside (LxWxH): 61 x 60 x 64 in / 156 x 153 x 163 cm
Dimensions inside (LxWxH): 57 x 57 x 63 in / 146 x 144 x 160 cm
Dimensions of shell top outside (LxW): 79 x 60 in / 201 x 153 cm
Dimensions of shell top inside (LxW): 77 x 56 in / 195 x 142 cm

Width of door opening (W x H): 59 x 56 in / 150 x 142 cm
Usable volume: 134 Cu.ft / Ca 3.8 m3

Standard weight: 220 lbs / 100 kg
Max gross weight: 3500 lbs / 1588 kg

Max load of the internal tie-down points: 2000 lbs / 907 kg

Valuable Cargo Container LD3 (Hanging Garment compatible)

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-400 ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600

Dimensions outside (LxWxH): 61 x 60 x 64 in / 156 x 153 x 163 cm
Dimensions inside (LxWxH): 57 x 57 x 63 in / 146 x 144 x 160 cm
Dimensions of shell top outside (LxW): 79 x 60 in / 201 x 153 cm
Dimensions of shell top inside (LxW): 77 x 56 in / 195 x 142 cm

Width of door opening (W x H): 59 x 56 in / 150 x 142 cm
Usable volume: 134 Cu.ft / Ca 3.8 m3

Standard weight: 220 lbs / 100 kg
Max gross weight: 3500 lbs / 1588 kg

Max. topload: 605 lbs / 275 kg
Max load of the internal tie-down points: 2000 lbs / 907 kg

AMP-Container (Hanging Garment compatible)

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-400 ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600

Dimensions outside (LxWxH): 125 x 96 x 63 in / 318 x 244 x 161 cm
Dimensions inside (LxWxH): 120 x 88 x 61 in / 305 x 223 x 154 cm
Width of door opening (W x H): 114 x 59 in / 289 x 149 cm
Usable volume: 370 Cu.ft / Ca 10.5 m3

Standard weight: 670 lbs / 305 kg
Max gross weight: 15000 lbs / 6804 kg

Max. topload: 4400 lbs / 2000 kg
Max load of the internal tie-down points: 2000 lbs / 907 kg

Tripple horse container

Loadable in: MD11, B747-200F, B747-200 SF, B747-400 ERF, B767-300 F, A300 F

Dimensions outside (LxWxH): 125 x 96 x 93 in / 318 x 244 x 235 cm
Dimensions inside (LxWxH): 92 x 74 x 91 in / 234 x 188 x 232 cm
Pallet size (LxW): 125 x 96" / 318 x 244 cm

Ramp (LxW): 69 x 41 in / 175 x 105 cm
Groom compartment (LxW): 92 x 43 in / 234 x 110 cm
Capacity: 1-3 horses

Standard weight: 1770 lbs / 805 kg
Max gross weight: 6610 lbs / 3000 kg

Tripple horse container

Loadable in: B747-200F, B747-200 SF, B747-400 ERF, B767-300 F, A300 F

Dimensions outside (LxWxH): 125 x 96 x 93 in / 318 x 244 x 235 cm
Dimensions inside (LxWxH): 92 x 75 x 91 in / 234 x 188 x 232 cm
Pallet size (LxW): 125 x 96" / 318 x 244 cm

Ramp (LxW): 67 x 41 in / 171 x 105 cm
Rear ramp (LxW): 87 x 67 in / 220 x 171 cm
Groom compartment (LxW): 92 x 43 in / 234 x 110 cm
Capacity: 1-3 horses

Standard weight: 2270 lbs / 1030 kg
Max gross weight: 7230 lbs / 3280 kg

Pet kennel

Size 1 (LxWxH): 24 x 18 x16 in / 60 x 45 x 40 cm
Weight: 9 lbs / 4 kg
Max animal weight: 33 lbs / 15 kg

Size 2 (LxWxH): 32 x 22 x 22 in / 80 x 55 x 55 cm
Weight: 13 lbs / 6 kg
Max animal weight: 66 lbs / 30 kg

Size 3 (LxWxH): 40 x 26 x28 in / 100 x 65 x 70 cm
Weight: 29 lbs / 13 kg
Max animal weight: 110 lbs / 50 kg

Size 4 (LxWxH): 49 x 30 x 33 in / 125 x 75 x 85 cm
Weight: 49 lbs / 22 kg
Max animal weight: 132 lbs / 60 kg

LD9 – heat/cool

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-400 ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600

Base dimensions (LxW): 125 x 88 in / 318 x 224 cm
Height: 64 in / 162 cm
Volume: 274 cu.ft / 7.75 m3
Max. internal dimensions (LxWxH): 98 x 79 x 54 in / 250 x 202 x 137 cm

Tare weight: 1753 lbs / 796 kg
Max. load: 11524 lbs / 5237 kg
Max gross weight: 13300 lbs / 6033 kg
Dry ice bunker: 704 lbs / 320 kg

Temp. operating range: -4 to +86 F / -20 C to +30 C
Batteries: fix installed

LD3 – heat/cool

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-400 ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600

Base dimensions (LxW): 78.7 x 60.4 in / 200 x 153 cm
Height: 64 in / 162 cm
Volume: 49 cu.ft / 1.65 m3
Max. internal dimensions (LxWxH): 48 x 46 x 46 in / 122 x 117 x 117 cm

Tare weight: 979 lbs / 444 kg
Max. load: 2522 lbs / 1144 kg
Max gross weight: 3500 lbs / 1588 kg
Dry ice bunker: 264 lbs / 120 kg

Temp. operating range: -4 to +86 F / -20 C to +30 C
Batteries: fix installed

Container LD3

Loadable in: B767-300 F

Dimensions of base (LxWxH): 96 x 60 x 64 in / 244 x 153 x 162 cm
Dimensions of shell top (LxW): 125 x 59 in / 317 x 149 cm
Width of door opening (W x H): 91 x 58 in / 230 x 147 cm
No. of loading beams: 6

Usable volume: 229 Cu.ft / Ca 6.5 m3
Standard weight: 270-280 lbs / 123-127 kg
Max gross weight: 5399 lbs / 2449 kg

Max load of the internal tie-down points: 2000 lbs / 907 kg

Standard pallet 88"

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600

Dimensions (LxW): 125 x 88 in / 318 x 224 cm
Usable loading area (LxW): 120 x 83 in / 304 x 210 cm

Standard weight incl. pallet net: 253 lbs / 115 kg
Max gross weight: 15000 lbs / 6804 kg

Pallet with side extensions 88"

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600

Dimensions (LxW): 125 x 88 in / 318 x 224 cm
Dimensions extensions (LxW): 19 x 22 in / 48 x 56 cm

Standard weight incl. pallet net: 368 lbs / 167 kg
Max gross weight: 15000 lbs / 6804 kg
Capacity per extension: 1320 lbs / 600 kg

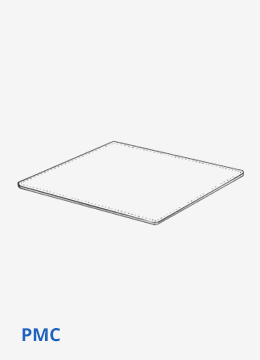

Standard pallet 96"

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600

Dimensions (LxW): 125 x 96 in / 318 x 244 cm
Usable loading area (LxW): 120 x 91 in / 304 x 230 cm

Standard weight incl. pallet net: 253 lbs / 115 kg
Max gross weight: 15000 lbs / 6804 kg

Pallet with side extensions 96"

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600

Dimensions (LxW): 125 x 96 in / 318 x 244 cm
Dimensions extensions (LxW): 19 x 22 in / 48 x 56 cm

Standard weight incl. pallet net: 368 lbs / 167 kg
Max gross weight: 15000 lbs / 6804 kg
Capacity per extension: 1320 lbs / 600 kg

Pallet without side extensions

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-ERF, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600

Dimensions (LxW): 125 x 60.4 in / 318 x 153 cm
Usable loading area (LxW): 120 x 55 in / 304 x 139 cm

Standard weight incl. pallet net: 339 lbs / 154 kg
Max gross weight: 7000 lbs / 3175 kg

Pallet with side extensions

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-ERF, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600

Dimensions (LxW): 125 x 60.4 in / 318 x 153 cm
Usable loading area (LxW): 120 x 55 in / 304 x 139 cm
Dimensions extensions (LxW): 19 x 22 in / 48 x 56 cm

Standard weight incl. pallet net: 339 lbs / 3175 kg
Max gross weight: 7000 lbs / 6804 kg
Capacity per extension: 770 lbs / 350 kg

Pallet with side extensions

Loadable in: A320-200, A321-100

Dimensions (LxW): 61.5 x 60.4 in / 156 x 153 cm

Standard weight incl. pallet net: 175 lbs / 80 kg
Max gross weight: 3500 lbs / 1588 kg
Max gross weight A320: 2500 lbs / 1134 kg
Capacity per extension: 770 lbs / 350 kg

Max loading height: 64 in / 162 cm
Max loading height A320: 46 in / 117 cm

Q-Pallet

Loadable in: B747-200 F, B747-200 SF, B747-400 ERF (Main Deck only)

Dimensions (LxW): 96 x 55 in / 244 x 140 cm
Usable loading area (LxW): 91 x 50 in / 230 x 126 cm

Standard weight incl. pallet net: 175 lbs / 80 kg
Max gross weight: 4000 lbs / 1814 kg

Heavy Duty Pallet 96"

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600

Dimensions (LxW): 125 x 96 in / 318 x 244 cm
Usable loading area (LxW): 120 x 91 in / 304 x 231 cm

Standard weight incl. pallet net: 360 lbs / 163 kg
Max gross weight: 15000 lbs / 6804 kg

20 ft-pallet

Loadable in: MD11, B747 F, B747-200 SF, B747-400 ERF

Dimensions (LxW): 235.8 x 96 x 2 in / 608 x 244 x 6 cm
Usable loading area (LxW): 233 x 91 in / 592 x 230 cm

Standard weight without pallet net: 1100 lbs / 500 kg
Max gross weight: 25000 lbs / 11340 kg

16 ft-pallet

Loadable in: MD11, B747-200 F, B747-200 SF, B747-400 ERF (Main deck only)

Dimensions (LxW): 196 x 96 x 2 in / 498 x 244 x 6 cm
Usable loading area (LxW): 191 x 91 in / 485 x 230 cm

Standard weight without pallet net: 880 lbs / 400 kg
Max gross weight: 25000 lbs / 11340 kg

Car Rack (in combination with PZA)

Loadable in: B747-200 F, B747-200 SF, B747-400 ERF (Main deck only)

Dimensions (LxW): 132 x 81 x 5 in / 335 x 205 x 13 cm

Standard weight: 415 lbs / 190 kg
Capacity: 5500 lbs / 2500 kg

Max wheel base: 91-124 in / 230 – 314 cm

Car Rack

Loadable in: B747-200 F, B747-200 SF, B747-400 ERF (Main deck only)

Dimensions (LxW): 91 x 58 x 61 in / 230 x 148 x 154 cm

Standard weight per pair: 285 lbs / 130 kg
Max gross weight pallet: 20500 lbs / 9300 kg
Max gross weight car: 5500 lbs / 2500 kg

Max wheel base: 125 in / 318 cm

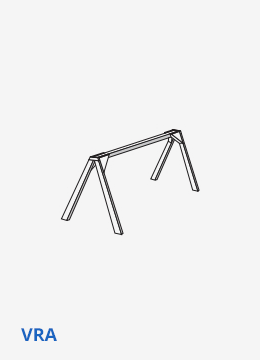

Car Rack

Loadable in: MD11, B747-200 F, B747-200 SF, B747-400 ERF (Main deck only)

Dimensions (LxW): 90 x 47 x 40 in / 230 x 120 x 102 cm

Standard weight per pair: 176 lbs / 80 kg
Max gross weight car: 5500 lbs / 2500 kg

Max wheel base: 125 in / 318 cm

Car Rack Combination PZA

Loadable in: B747-200 F, B747-200 SF, B747-400 ERF (Main deck only)

Car Rack Combination PMS

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600
